Cast-resin Busway Basic Parameters
- Product Series: YBJZCMC
- Product Name: Cast-resin Busway
- Product Brand: Yue Biao
- Specification:GB/T7251.6-2015(IEC61439-6:2012)；JB/T13690-2019
- Conductor Material: T2 electrolytic copper, tin-plated (silver-plated optional)
- Enclosure Material: Vacuum-cast epoxy resin (IP68)
- Degree of Protection: IP68 (anti-immersion)
- Unit Length: 1 m / 3 m standard; 0.5–6 m customizable on request
- Rated Operational Voltage (Ue): AC 220 V – 800 V
- Rated Insulation Voltage (Ui): AC 1 000 V
- Rated Current: 1 000 – 3 500 A
- Frequency: 50 Hz / 60 Hz
Rated Short-time Withstand Current: 50 kA (1 s) - Rated Peak Withstand Current: 105 kA
- Industry Application: Outdoor, humid, dusty or corrosive environments, industrial parks, underground tunnels, shipyards, chemical plants
- Customization: Available (length, fire-resistance layer, conductor plating, colour, joint configuration)

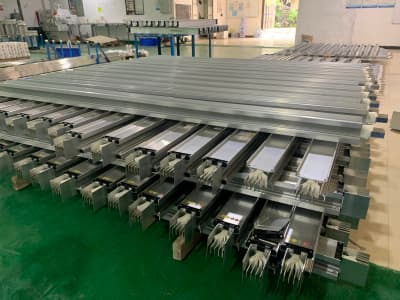

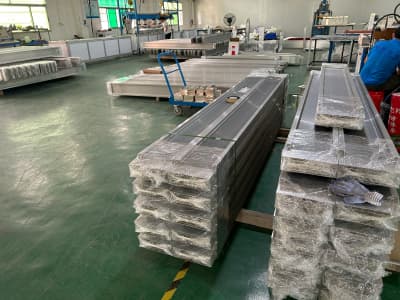

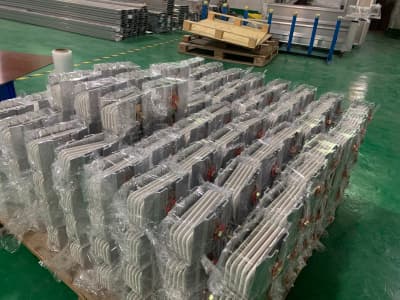

China Factory Production & Quality Assurance Gallery | ||
 |  |  |
