Common-Box Bus Duct Basic Parameters
- Product Series：YBCMC
- Product Name：Common-Box Bus Duct
- Product Brand：Yue Biao
- Specification：GB/T8349-2000
- Conductor Material：Copper bars tin-plated (or silver-plated)
- Enclosure Material：Aluminum alloy or other non-ferromagnetic (weak-magnetic) materials
- Degree of protection：IP54
- Frequency：50 / 60Hz
- Rated current：630–6300 A
- Unit Length：0.8 m / 3 m standard; 0.4–6 m customizable on request
- Rated Voltage: 3.15 kV, 6.3 kV, 10.5 kV, 20 kV, 35 kV
- Maximum Voltage: 3.6 kV, 7.2 kV, 12 kV, 24 kV, 40.5 kV
- Power-Frequency Withstand Voltage: 25 kV, 32 kV, 42 kV, 68 kV, 100 kV
- Lightning Impulse Voltage: 40 kV, 60 kV, 75 kV, 125 kV, 185 kV
- Industry Application：Generator-transformer links, HV switchgear feeders, excitation & large-motor circuits in power plants and heavy industry.
- Customization：Tailored dimensions, color, tap-off positions, IP rating and fire-resistance time on request.

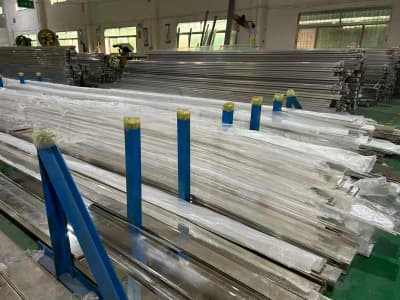

China Factory Production & Quality Assurance Gallery | ||
 |  |  |
Common-Box Bus Duct Features
1. Weak-magnetic steel shell suppresses eddy and circulating currents, cutting heat, losses and short-circuit forces.
2. Top/bottom access holes plus optional side & bottom louvers on high-current indoor units boost cooling and lower temperature rise.
3. Optimised insulator type and spacing keep natural frequencies clear of resonance and reduce electrodynamic stress.
4. Wall-passage partition blocks indoor-outdoor air exchange, eliminating condensation.
5. Snap-in temperature sensors at joints or hot spots enable quick inspection and maintenance.
